Why Your Machines Shake: The Complete Guide to Bearing Adapter Sleeves and Shaft Safety

Posted: December 16, 2025 | Author: G.T. Marketing Co., Ltd. | Filed under: Adapter, Manufacturer | Leave a comment

A loose metal part smaller than your hand can cost a factory thousands of dollars in just one hour.

In the world of heavy machinery, we often focus on the big engines or the large conveyor belts. We look at the massive gears and the loud motors. But often, the reason a machine stops working is not because of the big parts. It is because of the small parts that hold everything together.

If you work in a factory, distribute parts, or manage machine maintenance, you know that “downtime” is a scary word. Downtime means the machine stops. When the machine stops, you lose money. Today, we are going to talk about a specific part that prevents this: the bearing adapter sleeve.

What is a Bearing Adapter Sleeve?

To understand an adapter sleeve, you first need to understand the bearing. A bearing is a ring that helps wheels and shafts turn smoothly. It reduces friction.

However, the metal rod (the shaft) that goes through the bearing is not always the perfect size. Sometimes the shaft is smooth, and sometimes it is “stepped” (it has different levels).

An adapter sleeve is a specialized metal tube. It goes between the bearing and the shaft. It has a slit cut through it, allowing it to squeeze tightly. When you tighten the nut on the sleeve, the sleeve grips the shaft very hard. This locks the bearing in place.

Think of it as the bridge that connects the moving bearing to the stationary shaft. If this bridge is weak, the machine will shake, rattle, and eventually break.

Why Do Adapter Sleeves Fail?

Adapter sleeves are simple parts, but they must be high quality. Here are the three main reasons they fail:

1. Improper Installation: This is the most common reason. If you do not tighten the nut enough, the sleeve will slip. If you tighten it too much, you can crack the bearing inner ring.
2. Poor Quality Materials: Some manufacturers use soft metal. Soft metal changes shape under heavy loads. Once the shape changes, the grip is lost.
3. Wrong Sizing: If the sleeve does not match the shaft diameter perfectly, it cannot create a full grip. Even a gap of a hair’s width can cause vibration.

The Hidden Cost of Vibration

You might think a little shaking is okay. It is not. Vibration is the enemy of machinery.

When a bearing is not seated correctly on the adapter sleeve, it creates an imbalance, which sends shockwaves through the machine.

• It loosens bolts in other parts of the machine.
• It causes sensors to give wrong data.
• It creates heat, which destroys lubricants and grease.

Fixing the mounting issue is always cheaper than fixing the damage caused by vibration.

How to Choose the Right Adapter Sleeve

Not all sleeves are the same. When you look for a supplier or a manufacturer, you need to check three things:

1. Precision:
The sleeve must be perfectly round. If the sleeve is oval-shaped, the bearing will be oval-shaped. This causes noise and heat.

2. Material Strength:
The steel must be strong enough to handle the pressure of the lock nut, but flexible enough to grip the shaft. High-quality carbon steel is usually the best choice.3. Surface Finish:
The outside of the sleeve needs to be smooth, but the inside needs a specific texture to grip the shaft.

Maintenance Tips for Long Life

If you are a distributor selling to factories, or a user running machines, share these tips:

• Retighten after 24 hours: New installations often “settle.” Check the nut one day after installation.
• Listen to the machine: Use a stethoscope or vibration pen. If the sound changes, check the mounting immediately.
• Keep it dry: Rust can form between the sleeve and the shaft. This makes it impossible to remove the bearing later. Use high-quality sleeves with anti-rust coating if possible.

Why Quality Manufacturing Matters

The market is full of cheap parts. It is tempting to save a few dollars on an adapter sleeve. However, a cheap sleeve is often the hidden cause that destroys an expensive machine.

To understand why, we must look at what happens inside the metal.

1. The Hidden Weakness of Low-Grade Steel

On the outside, all adapter sleeves look shiny and new. But inside, the quality of the steel is different. Low-quality manufacturers often use recycled steel with inconsistent density. This steel may contain microscopic air bubbles or impurities.

When a machine runs at high speed, the centrifugal force puts immense pressure on the sleeve. High-quality steel holds its shape. Low-quality steel begins to stretch or deform. Once the metal deforms, the grip on the shaft is lost. The sleeve does not break immediately; it loosens slowly, causing invisible damage until it is too late.

2. The Danger of “False Tightness”

Precision in manufacturing threads is critical. In cheap manufacturing, the threads on the sleeve are often rough or slightly uneven.

When you install the lock nut, it feels tight. You verify it with your wrench. But this is a “false tight.” The nut is merely stuck against a rough spot on the thread, not actually clamping the bearing down.

After a few hours of operation, vibration smooths out that rough spot. Suddenly, the nut is loose. The bearing shifts, and the shaft gets damaged. A manufacturer who understands the physics of rotation ensures threads are perfectly smooth to prevent this error.

3. Consistency is Key

If you buy 100 adapter sleeves, every single one must be identical. Cheap manufacturers often have “tolerance” issues. This means Sleeve #1 might fit perfectly, but Sleeve #50 is slightly too thick, and Sleeve #99 is slightly oval-shaped.

The Chin Sing Solution: Engineering Safety for Your Machinery

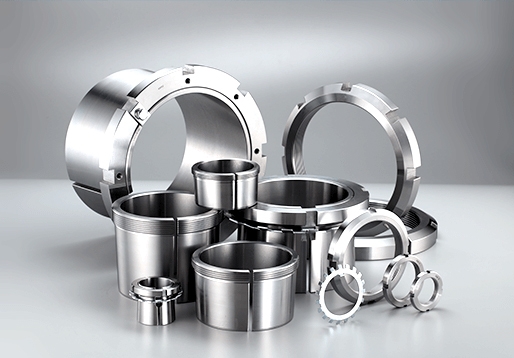

This is where Chin Sing excels. Chin Sing Precision Industry Co., Ltd. is a dedicated manufacturer of bearing parts, including adapter sleeves, withdrawal sleeves, and lock nuts.

Chin Sing does not just sell metal tubes. They engineer safety solutions.

• High Precision: Their adapter sleeves are manufactured to strict international standards. This ensures they fit perfectly on shafts and inside bearings, reducing vibration and extending machine life.
• Durability: They use high-quality steel that resists deforming under high pressure. This means once you lock it, it stays locked.
• Wide Range: Whether you need standard sizes or specific hydraulic adapter sleeves for heavy-duty applications, Chin Sing has the capability to supply them.

Take Action Before the Machine Stops

Don’t wait for the rattling sound. Don’t wait for the production line to stop. Check your bearing adapter sleeves today.

If you are looking for a reliable partner who can provide high-quality bearing accessories that meet strict industrial standards, you need to speak with the experts.

Visit the Chin Sing Website today to view their catalog of adapter sleeves and bearing parts. Ensure your machinery is built on a foundation of quality.

---
